NSPanel Pro is a 3.95-inch wall-mounted touchscreen that brings your whole smart home onto one panel. It has a Zigbee 3.0 gateway built in, controls eWeLink Wi-Fi devices, shares them with Alexa, Google Home, Apple Home and Home Assistant through its Matter Bridge, and can run the official Home Assistant app as a dedicated wall dashboard.
Screen
3.95" touch, 480×480

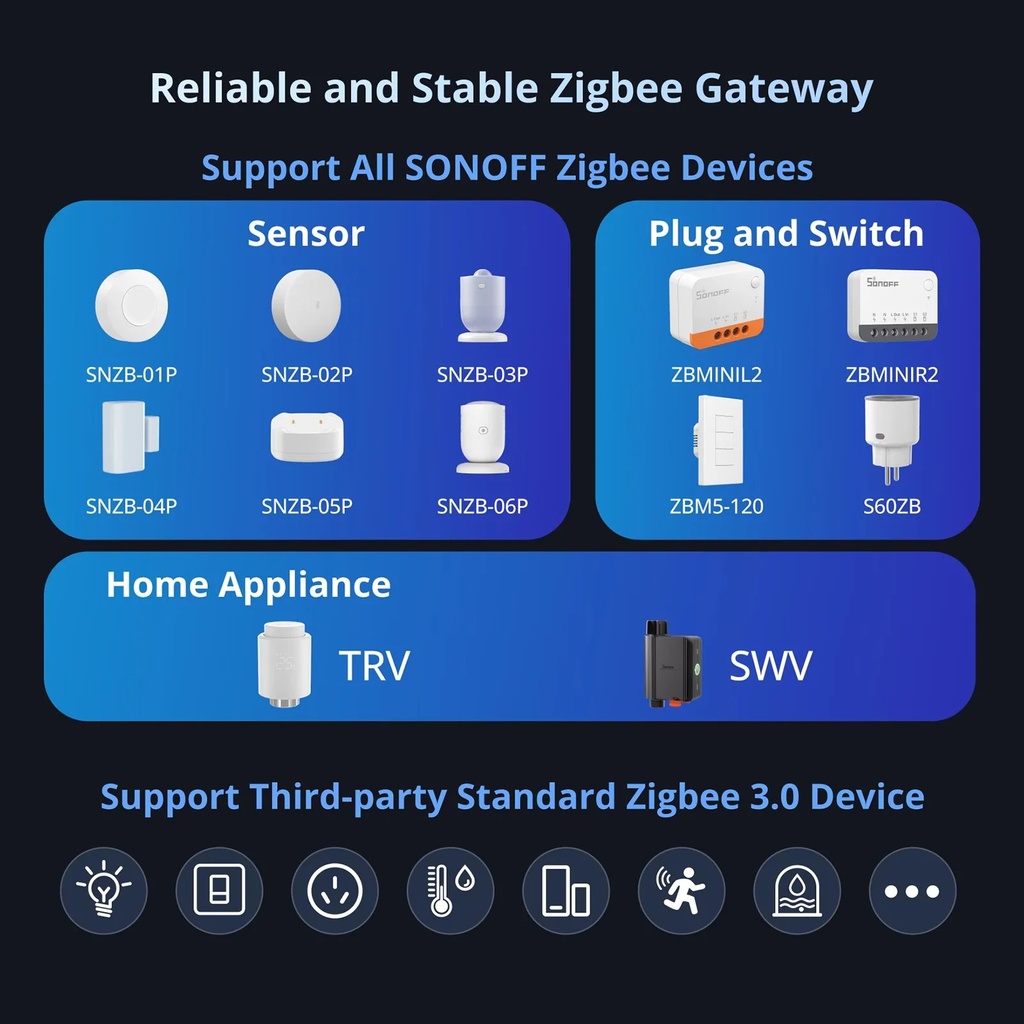

Zigbee gateway
Built-in, Zigbee 3.0
Ecosystems
Matter Bridge, Alexa, Google
Installation
86 × 86 mm wall box
Main features
All-in-one control

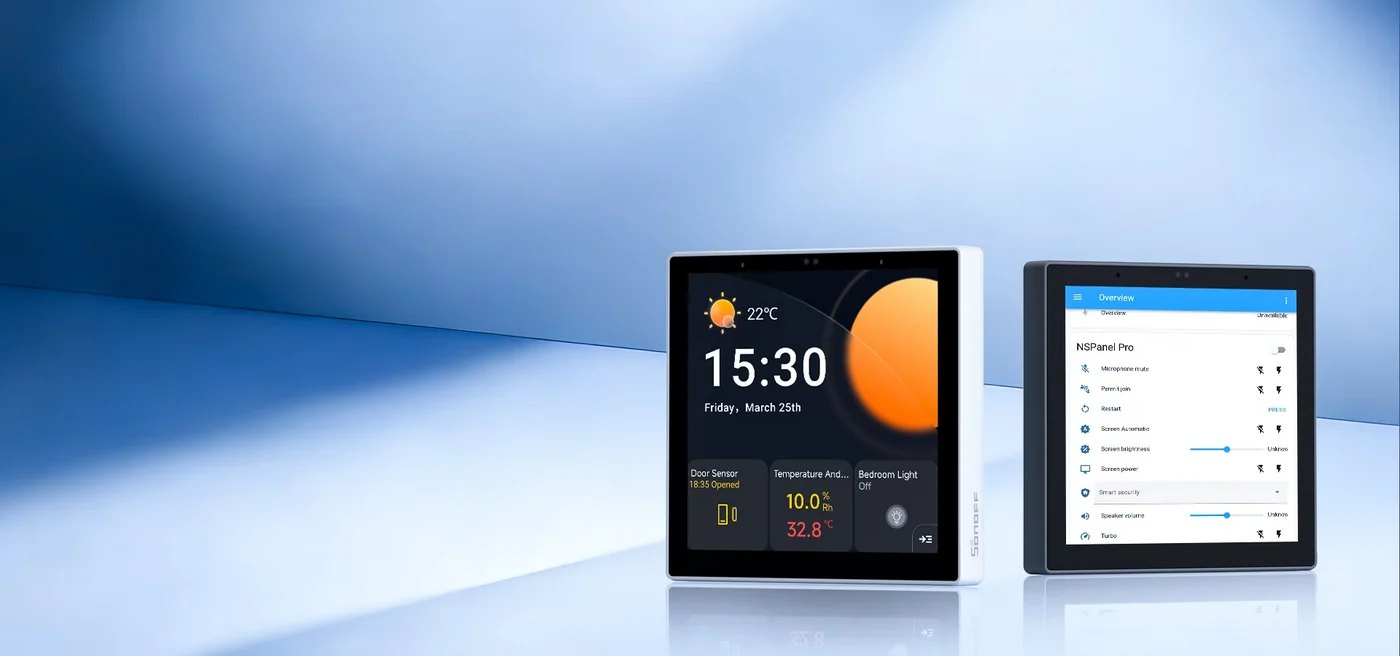

Your whole home on one screen
Lights, switches, plugs, sensors, cameras and scenes from one panel by the door. See energy use, temperature and humidity at a glance and run a whole scene with a single tap.
Home Assistant

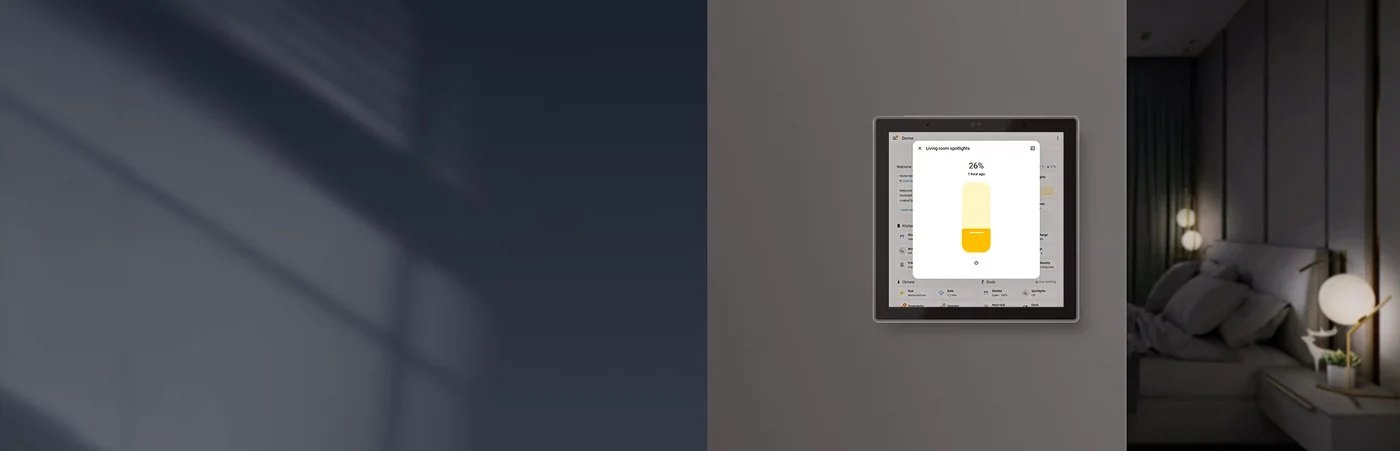

A dedicated Home Assistant dashboard
Install the official Home Assistant app from the built-in F-Droid store, with no rooting needed, and turn the panel into a wall dashboard for your Home Assistant server. Zigbee devices paired to the panel can also be shared with Home Assistant over MQTT.
Matter Bridge

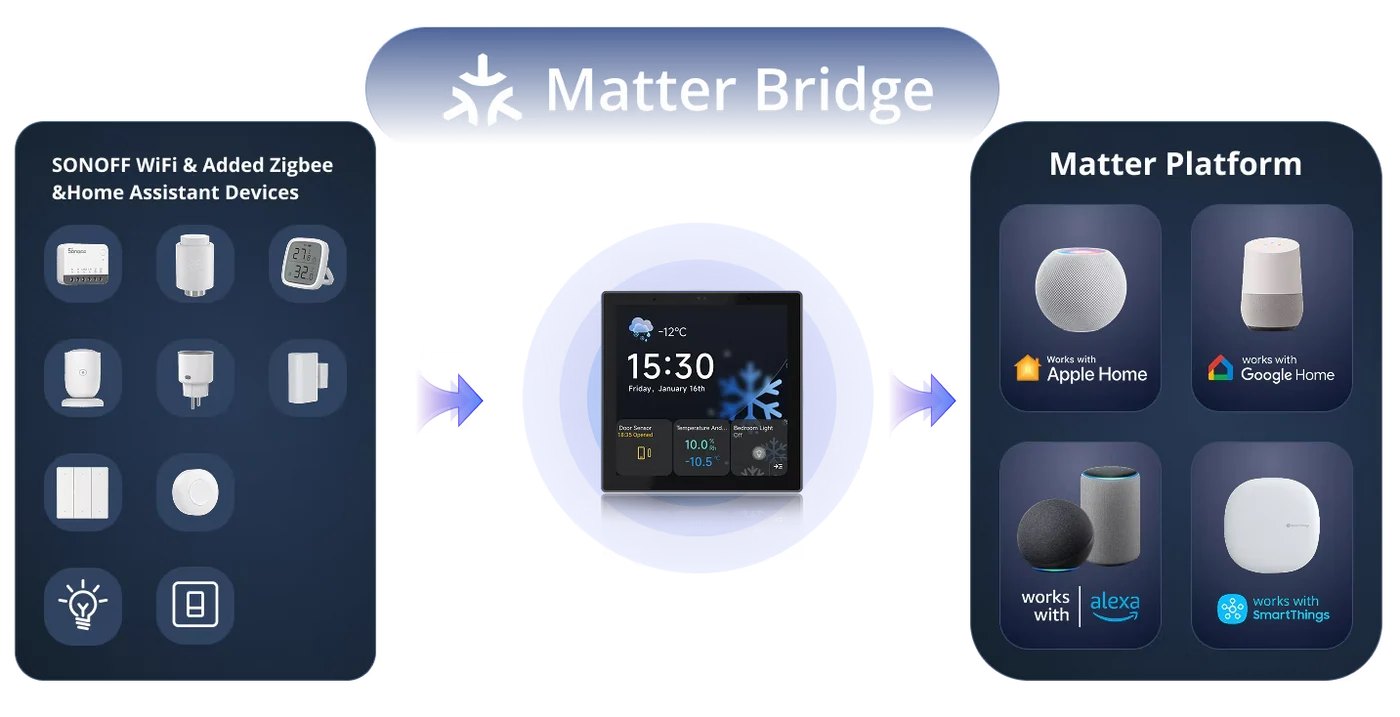

Share devices across ecosystems
Scan the Matter pairing code and your eWeLink Wi-Fi and Zigbee devices appear in Apple Home, Google Home, Amazon Alexa, SmartThings or Home Assistant, so everyone at home can use the app they prefer.
Smart thermostat
Room-by-room climate control
Use SONOFF Zigbee temperature sensors as sources and let the panel switch heaters, air conditioners or radiator valves on schedules: cooler bedrooms at night, a warm living room in the evening and lower energy bills.
Personalise

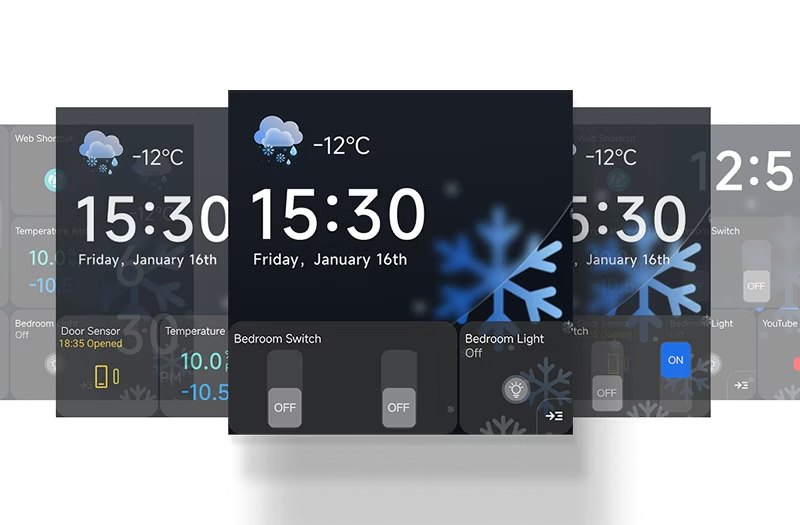

Make it yours
Choose wallpapers and home-screen layouts, install third-party Android apps, set any app as the home screen and save web pages for one-tap access to music, video or your favourite dashboards.
Security
Arm your home from the wall
Create up to three security modes with the sensors you choose. When a sensor is triggered the panel sounds an alarm and your phone gets a notification, and you can watch SONOFF, RTSP or ESP32 cameras live on the screen.
Compatibility
eWeLinkZigbee 3.0Matter BridgeAmazon AlexaGoogle HomeApple Home (Matter)SmartThings (Matter)Home Assistant
Good to know

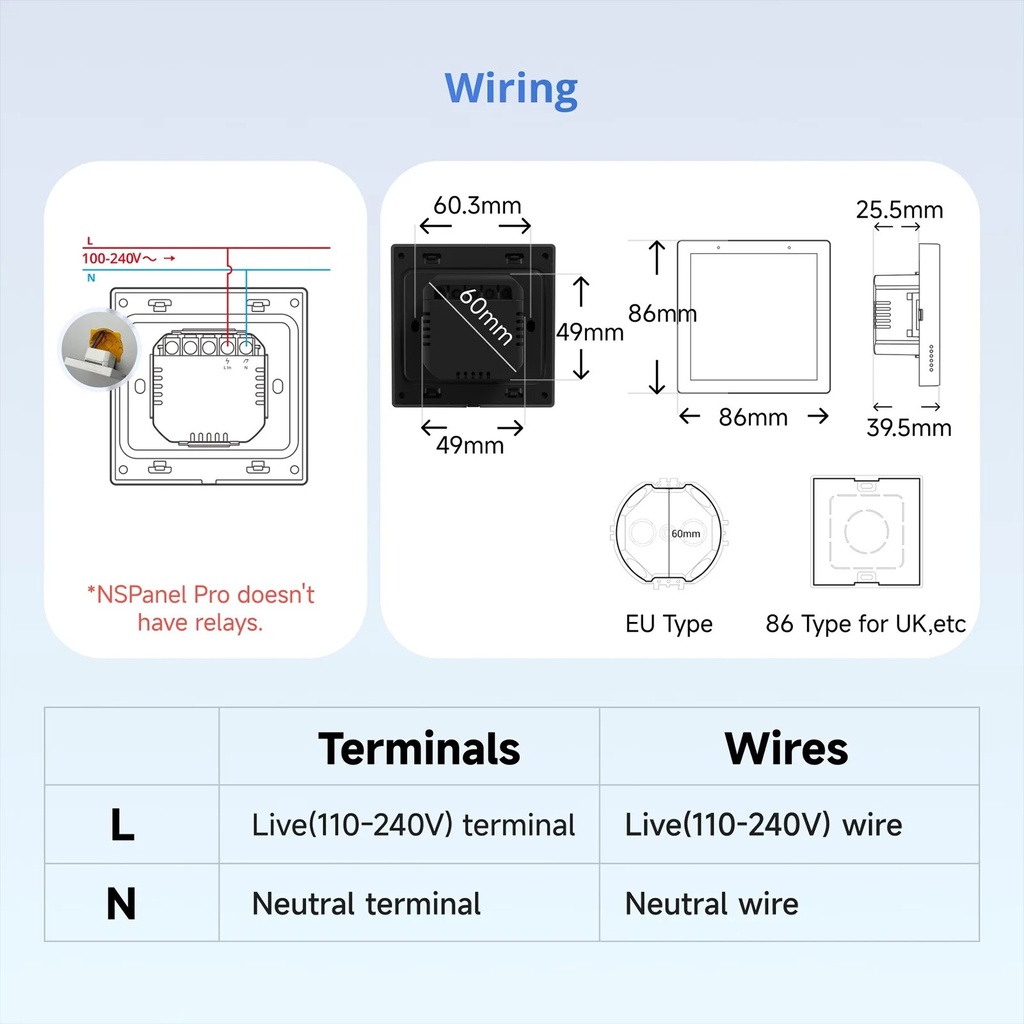

NSPanel Pro has no built-in relay, so it does not switch a light circuit by itself. Pair it with SONOFF smart switches or relays to control your lights. It needs mains power (100–240 V) at the wall box.
Specifications
General
| Brand | SONOFF |
|---|
| Model | NSPanel Pro 86 Type |
|---|
| Colour | Dim Gray |
|---|
| Screen | 3.95" capacitive touchscreen, 480 × 480 |
|---|
Hardware
| Processor | PX30, quad-core Cortex-A35 |
|---|
| GPU | Mali-G31 |
|---|
| RAM | 2 GB DDR3 |
|---|
| Storage | 8 GB eMMC 5.1 |
|---|
Connectivity
| Wi-Fi | IEEE 802.11 b/g/n 2.4 GHz |
|---|
| Zigbee | IEEE 802.15.4 (Zigbee 3.0) |
|---|
| App | eWeLink |
|---|
Power & size
| Input | 100–240 V AC, 50/60 Hz |
|---|
| Power consumption | 5 W max |
|---|

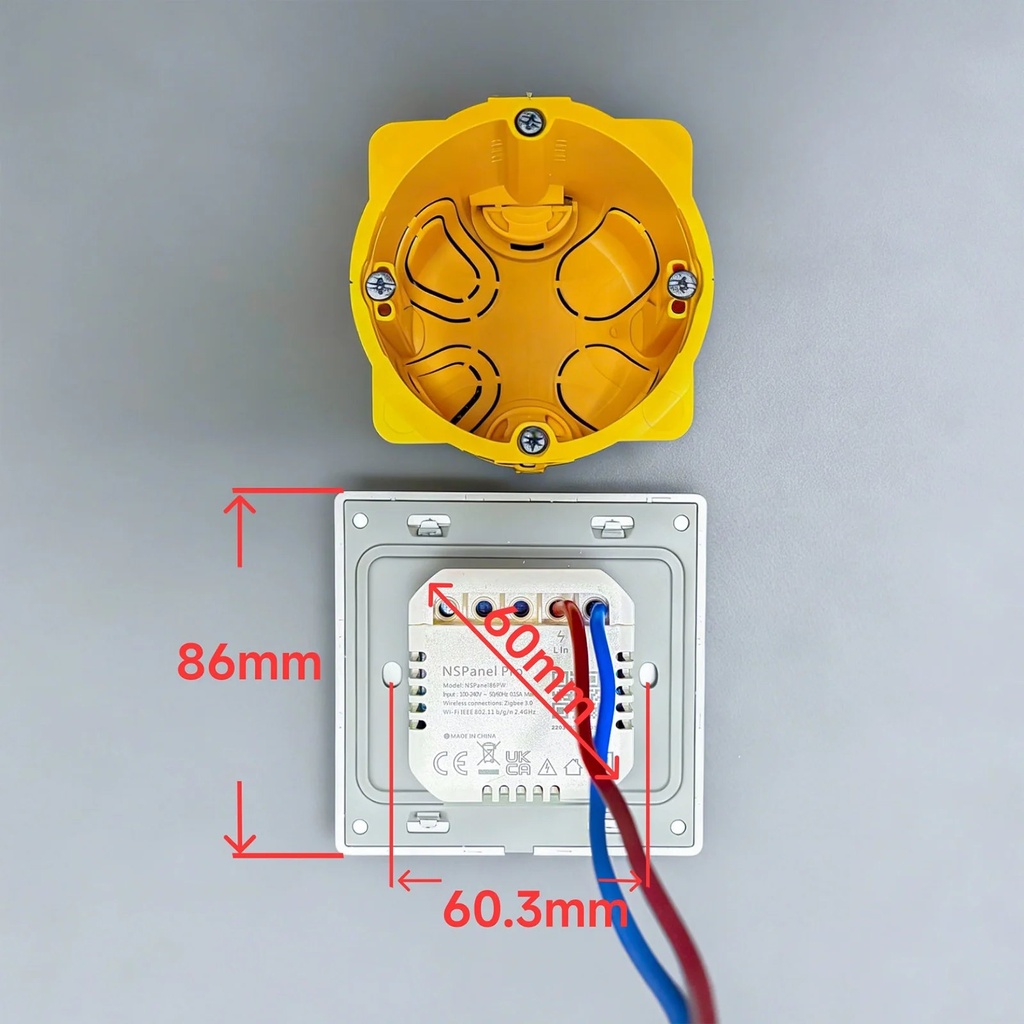

| Dimensions | 86 × 86 × 39.5 mm |
|---|
| Materials | PC V0, steel, tempered glass |
|---|
| Certifications | CE, UKCA, RoHS |
|---|
