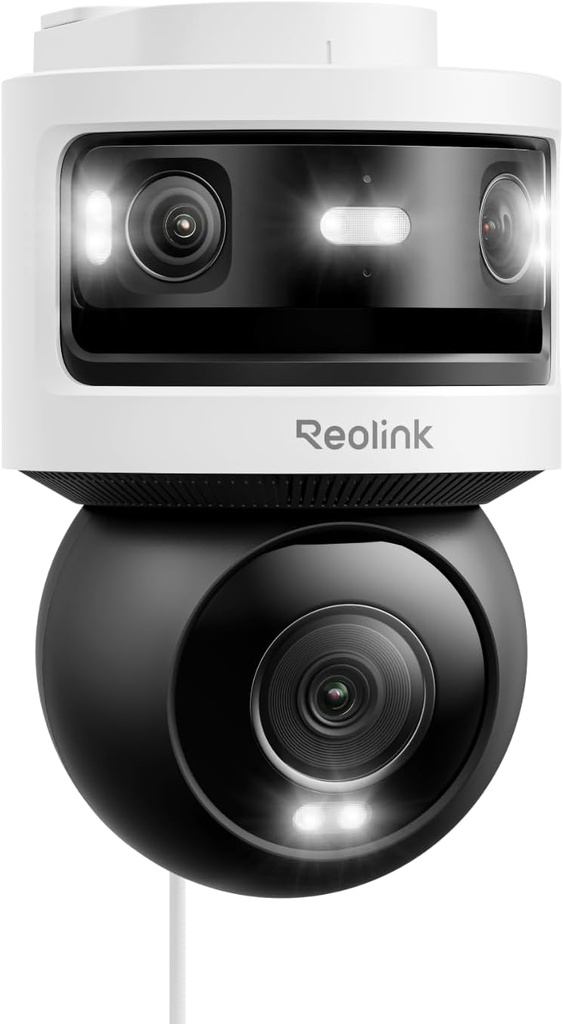

Reolink WIFI Outdoor PTZ Camera 18MP Triple Lens Panoramic-PT Camera (OMVI Series W931)

• Complete Coverage. Nothing Missed
• Total 18MP Panoramic-PT Coverage
• 10MP Dual-Lens 180° View
• 4K 360° Full Coverage
• Synctrack & Auto Framing
• Local AI Video Search (No Monthly Fees)
• 24/7 Recording & Secure Local Storage
• Two-in-One Camera for Total Coverageolor Night Vision
• Your Footage. Your Storage. Your Rules
• Dual-Band Wi-Fi 6

Specifications

Video & Audio

• Image Sensor : 1/2.7"+1/2.7''+1/2.8"CMOS sensor
• Resolution : Upper cam: 5120 x 1920 (10MP) / Lower cam: 3840 x 2160 (8MP)
• Lens : Upper cam: f=2.8mm / F=1.6 / Lower cam: f=6mm / F=1.6
• Video Compression : H.264/H.265
• Zoom : Digital Zoom
• Field of View : Upper cam: H:180° / V:65° / Lower cam: H:55° / V:30°
• Infrared Night Vision : Up to 30 meters (100ft) (auto-switching with IR-cut filter)
• Color Night Vision : With spotlights: 8pcs/7W/6000K
• Frame Rate : Main stream: 2fps - 20fps (default: 20fps) / Sub stream: 4fps - 20fps (default: 20fps)
• Code Rate : Upper cam: Main stream: 3072Kbps - 6144Kbps (default: 4096Kbps) / Sub stream: 256Kbps -2048Kbps (default: 1536Kbps) / Lower cam: Main Stream: 3072Kbps - 6144Kbps (default: 4096Kbps) / Sub stream: 256Kbps -1228Kbps (default: 1228Kbps)
• Audio : Two-way audio

Power Requirements

• WiFi : 2.4/5GHz WiFi 6
• DC Power : DC 12.0V⎓2A / <24W

Interface

• Power Port : DC power port
• SD Card Slot : Supports Max. 512GB microSD card
• Reset Button ; YES
• Audio In/Out : Built-in microphone and speaker

Pan & Tilt

• PT Angle(Max.) : Pan: 350° / Tilt: 50°
• Pan Speed : 60/4°-60°/s (configurable)
• Tilt Speed : 30/8°-30°/s (configurable)
• Preset Points : Suppots 1 guard position & up to 64 preset positions
• Patrol : Supports 1 patrol / up to 4 presets per patrol
• Sync Tracking : YES

Wi-Fi

• Wireless Standard : IEEE 802.11 ac/ax/a/b/g/n
• Operating Frequency : 2.4GHz/5GHz
• Wireless Security : WPA/WPA2/WPA3

Bluetooth

• Bluetooth : YES

Software

• Browsers Supported : Edge / Chrome / Firefox / Safari
• OS Supported : PC: Windows / Mac OS / Smartphone: iOS / Android
• Protocols & Standards : HTTPS / SSL / TCP/IP / UDP / HTTP / IPv4 / UPnP / RTSP / RTMP / SMTP / NTP / DHCP / DNS / DDNS / FTP / P2P
• User Access : Max. 20 users (1 admin & 19 user) / Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

• Smart Alarm : Motion detection / person detection / vehicle detection / animal detection
• Auto Framing : YES
• Local AI Video Search : YES
• Perimeter Protection : Upper cam: Line Crossing Alert / Zone Intrusion Alert / Zone Loitering Alert / Lower cam: N/A
• Recording Modes : Motion-triggered recording (default) / Scheduled recording / 24/7 recording
• Time Lapse : YES
• Tracking Methods : Sync Track
• Smart Home Compatibility : Google Assistant

Working Environment

• Operating Temperature : -10°C~+55°C (14°F~131°F)
• Operating Humidity : 10% ~ 90%
• Weatherproof : IP66

Mechanical

• Dimensions : 202*151*125mm
• Weight (Without Accessories) : 1.1kg
