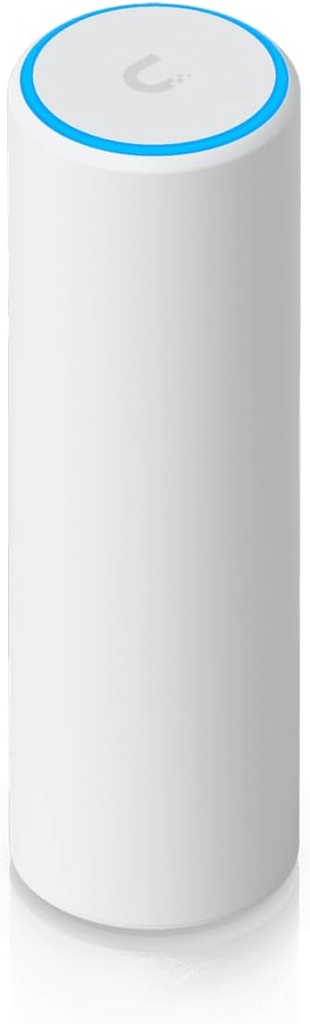

Ubiquiti UniFi 7 Mesh Wi-Fi 7 Outdoor Access Point U7-Mesh

The UniFi U7 Mesh is Ubiquiti's compact, weather-resistant Wi-Fi 7 access point designed for flexible indoor and outdoor deployments. It retains the signature small, cylindrical form factor of the AC Mesh and Wi-Fi 6 Mesh models while bringing Wi-Fi 7 (802.11be) support and upgraded 2.5 GbE backhaul.

• Compact Form Factor: Sleek, narrow cylinder designed for minimalist tabletop placement, wall-mounting, or pole-mounting.

• Indoor / Outdoor Versatility: Built with an IPX6-rated UV-stabilized enclosure, capable of handling harsh weather conditions.

• 2.5 GbE Uplink: Prevents Ethernet bottlenecks, allowing high-speed Multi-Gig throughput across Wi-Fi 7 wireless connections.

• Enhanced 5 GHz Performance: Features dynamic antenna switching providing omnidirectional (6 dBi) or directional (up to 10 dBi) gain on 5 GHz.

• Dual-Band Wi-Fi 7 Focus: Unlike ceiling-mounted "Pro" models (which include a dedicated 6 GHz radio), the U7 Mesh focuses on dense dual band (2.4 GHz + 5 GHz) coverage to maximize range and wall penetration, especially suited for outdoors or secondary mesh nodes.

Specifications

• Dimensions: ⌀48.5 x 159.5 mm

• Weight: 313 g

• Enclosure Material: UV-stabilized polycarbonate

• Mounting: Wall, pole, or tabletop stand (mounts included)

• Weatherproofing: IPX6 rating (when using the outdoor mount)

• Wi-Fi Standard: Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax

• Bands: Dual-band 5 GHz and 2.4 GHz

• MIMO / Spatial Streams: 4 total spatial streams (2x2 on 5 GHz, 2x2 on 2.4 GHz)

• Max Data Rates: 5 GHz up to 4.3 Gbps (BW240), 2.4 GHz up to 688 Mbps (BW40)

• Antenna Gain: 5 GHz omnidirectional 6 dBi / directional 10 dBi, 2.4 GHz 3 dBi

• Max TX Power: 5 GHz at 24 dBm, 2.4 GHz at 23 dBm

• Coverage Area: Up to 140 m² (1,500 ft²)

• Client Capacity: 200+ concurrent clients

• Uplink Interface: (1) 2.5 GbE RJ45 port

• Power Method: 802.3af PoE (42.5 to 57V DC)

• Max Power Consumption: 13 W

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), PPSK

• BSSIDs: Up to 8 per radio

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

• Operating Humidity: 5% to 95% noncondensing

• Certifications: CE, FCC, IC
