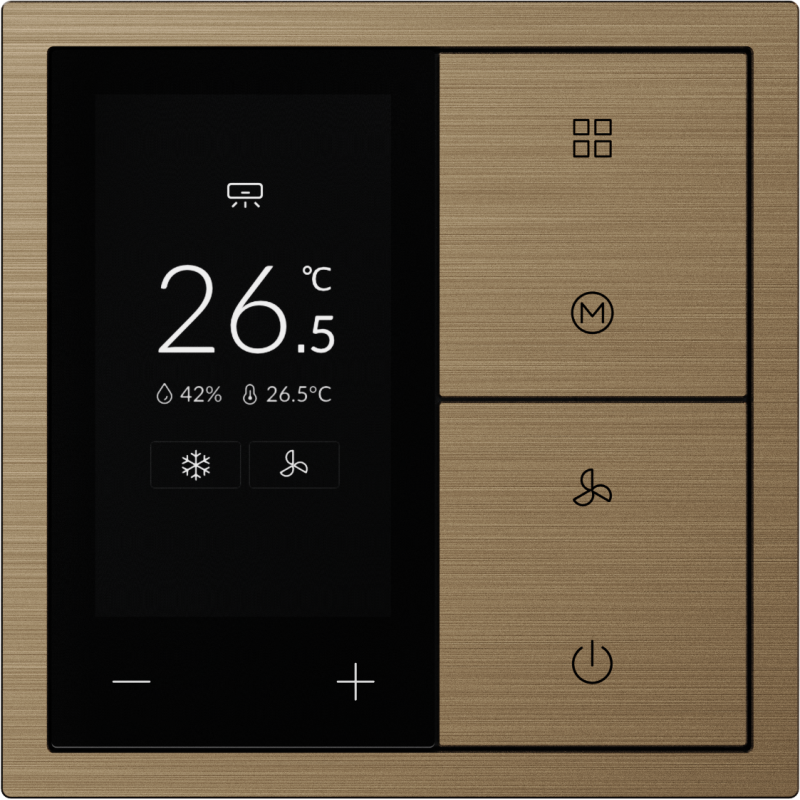

HDL Panel XELENT SERIES Brass Thermostat 6 Button OLED

Powered by MPFPIT-2P-KT.18 (order code : 31201)

• Built-in temperature and humidity sensor collects the temperature and humidity of the location of the device and displays it on the screen, supporting scene linkage with other devices of HDL system
• Human proximity sensor : When the human body approaches this device, the panel's display screen will light up automatically
• Screen backlight brightness can be set on EST
• HVAC control : air conditioning control (VRF), floor heating control, fresh air control.
• Button lock/unlock function

Xelent Series Thermostat Panel, has a segmented LCD screen and mechanical buttons, each button supporting laser engraving, and it has air conditioning, underfloor heating, fresh air pages and mode, wind speed pages

Specifications

• Input  : ≤250mA/5V DC
• KNX bus supply : 5mA/30V DC
• Auxiliary power supply : 52mA/24V DC
• Dimensions (W X H X D) 81.3×81.3×9(mm) (Not including power interface)
