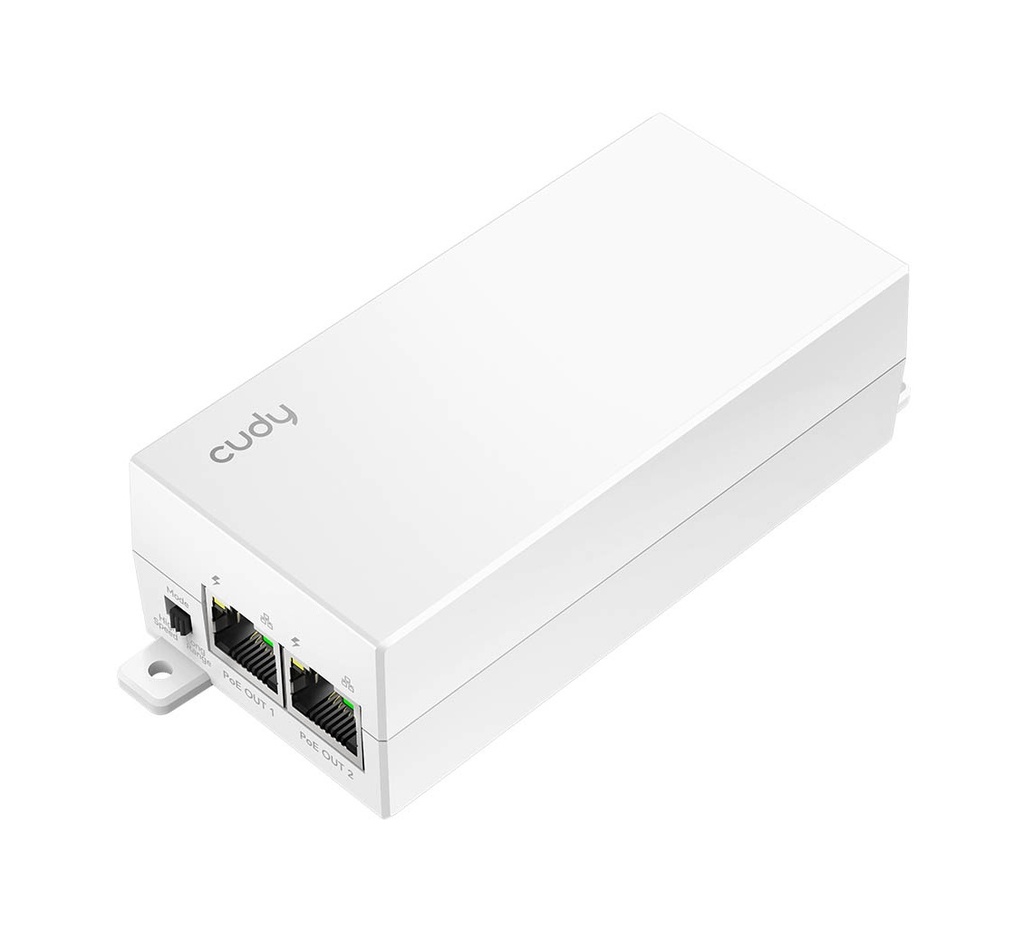

Cudy PoE Extender Gigabit 2PoE 30W with PoE++ Input POE20

The Cudy POE20 is a powerful, 2-channel Gigabit PoE++ Extender designed to cost-effectively scale network reach without requiring additional local power sources. By accepting high-power IEEE 802.3bt PoE++ input, it splits and extends power and data to two Gigabit PoE output lines, making it an essential deployment tool for powered devices like IP cameras, access points, and VoIP phones. For retail customers, it offers an easy plug-and-play solution to expand outdoor or remote smart devices without hiring an electrician. It serves as a highly scalable component that dramatically cuts cabling costs and installation time on commercial infrastructure projects.

• Dual-Channel Expansion: Accepts a single PoE++ input line and splits it into two Gigabit PoE output lines to power multiple remote devices simultaneously.
• Extended Reach Modes: Features a High-Speed Mode for up to 100-meter Gigabit extension, as well as a selectable Long-Range Mode that reaches up to 250 meters for ultra-far deployments.
• High Power Delivery: Supports IEEE 802.3bt/at/af standards to deliver up to 30 W per PoE output port to demanding network gear.
• Pass-Through Plug-and-Play: Requires no extra electrical wiring or local AC power adapters, deriving operational power directly from the main PoE stream.
• Durable & Flexible Mounting: Built with a compact chassis designed for effortless wall or surface mounting in diverse environment setups.

Specifications

• Model: POE20
• Product Type: 2-Channel Gigabit PoE++ Extender
• Ethernet Ports: 1 × Gigabit RJ45 PoE Input, 2 × Gigabit RJ45 PoE Outputs
• PoE Input Standard: IEEE 802.3bt / 802.3at / 802.3af (Up to 60 W input)
• PoE Output Standard: IEEE 802.3at / 802.3af (Max 30 W per port)
• Data Transfer Rates: 10 / 100 / 1000 Mbps
• Transmission Distance: Up to 100 m (High-Speed Mode @ 1 Gbps), up to 250 m (Long-Range Mode @ 10 Mbps)
• Installation Method: Plug-and-play, wall mountable
• Operating Temperature: 0 °C to 40 °C
• Dimensions: 123 mm × 50 mm × 36 mm
• Weight: 89.6 g
