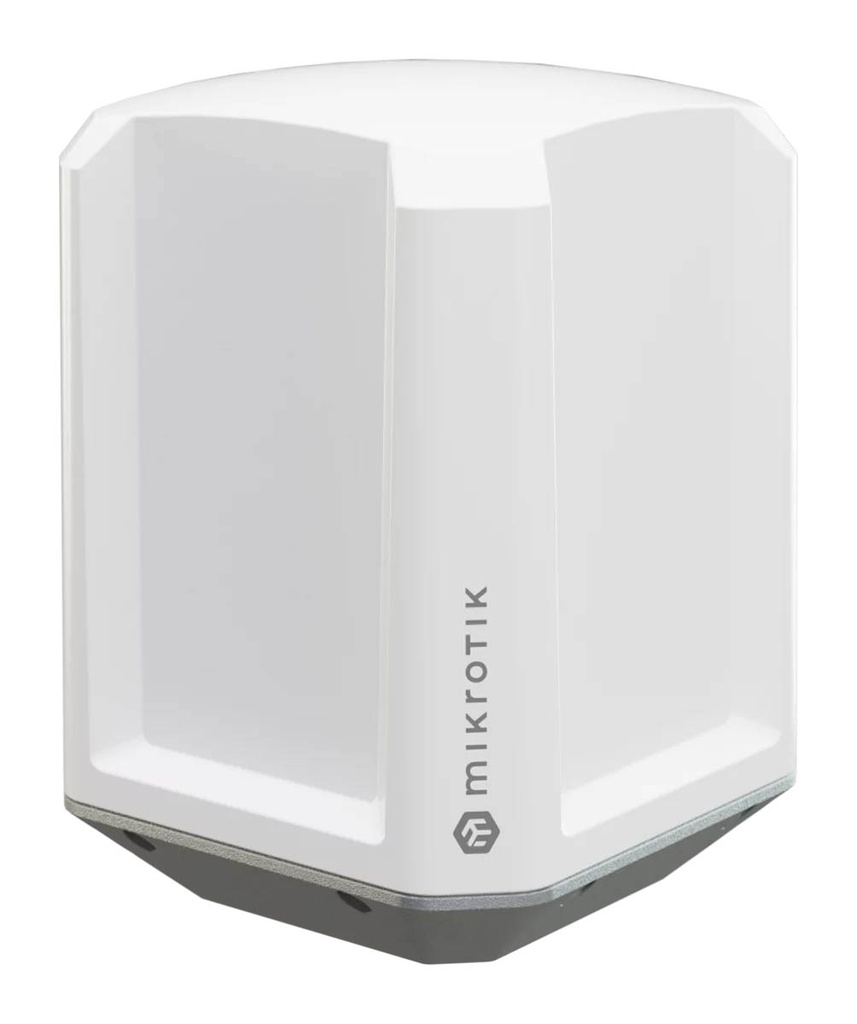

MikroTik Router 5G LAMP 5G R16 Outdoor Rugged eSIM/MicroSim LAMPGM&RG520F

The MikroTik LAMP 5G R16 is a high-performance, weather-resistant outdoor 5G CPE engineered for environments where pointing a directional antenna is impractical or impossible. Utilizing a 360-degree omnidirectional antenna array alongside Rel-16 5G technology, it seamlessly locks onto the best available signal in dynamic environments such as ports, urban centers, and coastal areas. Equipped with a built-in eSIM and MikroTik Connectivity support, it simplifies remote deployments while eliminating physical SIM handling. Designed for maximum durability, it features IP67 weatherproofing and complies with EN 60945 maritime standards, making it the definitive choice for maritime communication, fleet tracking, and multi-operator outdoor deployments.

• Omnidirectional 5G Signal Intake: Automatically connects to the strongest surrounding cell tower without requiring physical alignment or re-positioning.

• Built-in eSIM & Physical MicroSIM Slot: Enables instant, zero-touch provisioning and multi-profile switching alongside standard SIM compatibility.

• Marine & Harsh-Environment Ready: Features IP67 ingress protection and EN 60945 maritime compliance for high resistance to salt, spray, and moisture.

• Integrated GNSS Positioning: Built-in support for GPS, GLONASS, Galileo, BeiDou, and QZSS for real-time asset tracking and fleet management.

• High-Speed Mobile Connectivity: 5G SA/NSA support (up to 4.2 Gbps DL / 900 Mbps UL) with LTE Category 20 fallback.

• Flexible Power Options: Driven by Gigabit Ethernet with standard 802.3af/at PoE-In functionality over 12–56 V.

Specifications

• Product code: LAMPGM&RG520F-EU
• Architecture: ARM 64bit
• CPU: 88F3720
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• CPU Threads count: 2
• RouterOS license: 3
• Operating System: RouterOS v7
• Size of RAM: 512 MB
• Storage size: 32 MB
• Storage type: FLASH
• MTBF: Approximately 200000 hours at 25C
• Tested ambient temperature: -40°C to 70°C

• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 10 W
• Max power consumption without attachments: 10 W
• PoE in: 802.3af/at
• Cooling type: Passive
• PoE in input Voltage: 12-56 V

• 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands: 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
• LTE Category: 20 (DL: 2.0 Gbps; UL: 200 Mbps)
• MIMO DL: 4x4
• MIMO UL: 2x2
• LTE FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz),  20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
• LTE TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz)
• 5G NSA FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
• 5G NSA TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
• 5G SA FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
• 5G SA TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
• TAC: 86945405

• 10/100/1000 Ethernet ports: 1
• Number of 1G Ethernet ports with Reverse PoE (PoE-in): 1

• Number of SIM slots: 1 Modem (Micro SIM)
• Number of M.2 slots: 1
• eSIM: Yes

• Certification: CE, EAC, ROHS
• IP: 67
