SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A

  • Zigbee 3.0 in-line energy meter, 16 A
  • Measures consumption or solar generation
  • Cost calculation with fixed or time-of-use tariffs
  • Overload and voltage alerts, 180-day history
  • Compact 32 × 29 mm, Zigbee router
16.99 € 16.99 €
14.28 €
  • Brand
  • Colour
  • Color
  • Housing Material
  • Manufacturer
  • Operating Temperature
  • Operating Humidity
  • Dimensions
  • Product Model
  • Net Weight
  • Zigbee
  • Rating
  • App
  • Installation Location
Contact Us
 ​

MINI PM is a small Zigbee energy meter you wire in line with an appliance or circuit. It does not switch the load; it measures it. See real-time consumption or solar generation, 180 days of history and the cost on your tariff, and get notified when an appliance starts or stops.

Function
Energy meter, no relay
Max current
16 A
History
180 days
Protocol
Zigbee 3.0 router

Main features

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – One module, full energy visibility
Retrofit

One module, full energy visibility

Install it behind a socket or in a junction box to measure a single appliance or a whole circuit.

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Consumption and generation
Energy & solar

Consumption and generation

Real-time charts for consumption or solar generation, with fixed or time-of-use tariffs for accurate cost figures.

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Protect your appliances
Alerts

Protect your appliances

Customisable overload, overcurrent, overvoltage and undervoltage alerts, plus notifications when an appliance changes state.

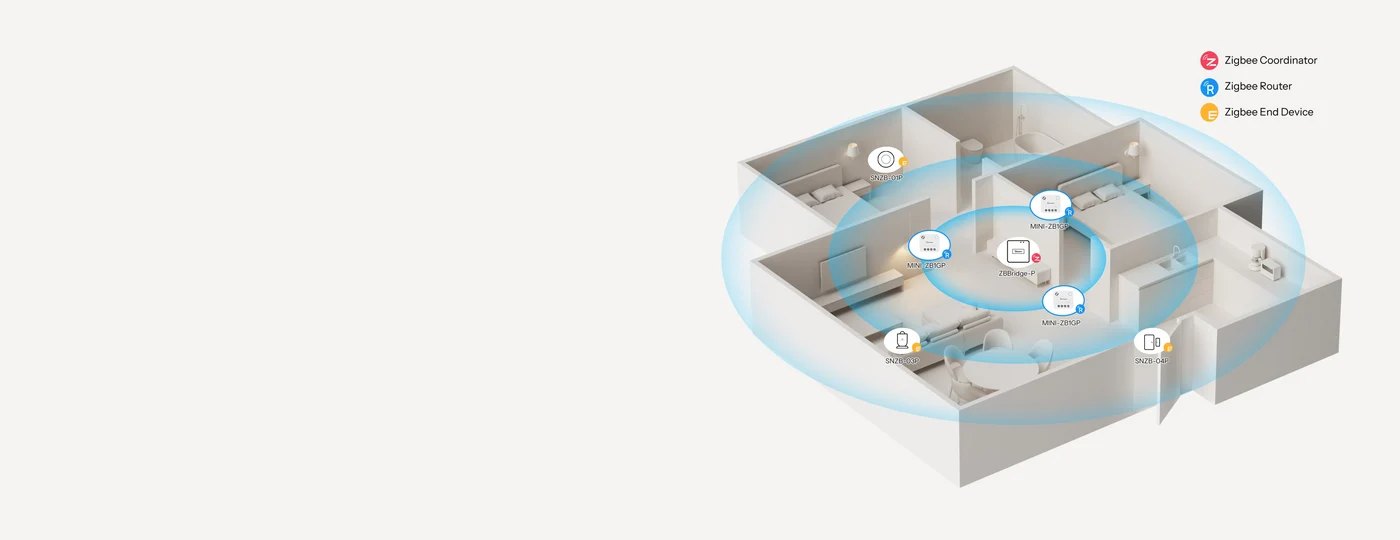

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Strengthens your mesh
Zigbee router

Strengthens your mesh

Being mains-powered, it also repeats the Zigbee signal for other devices.

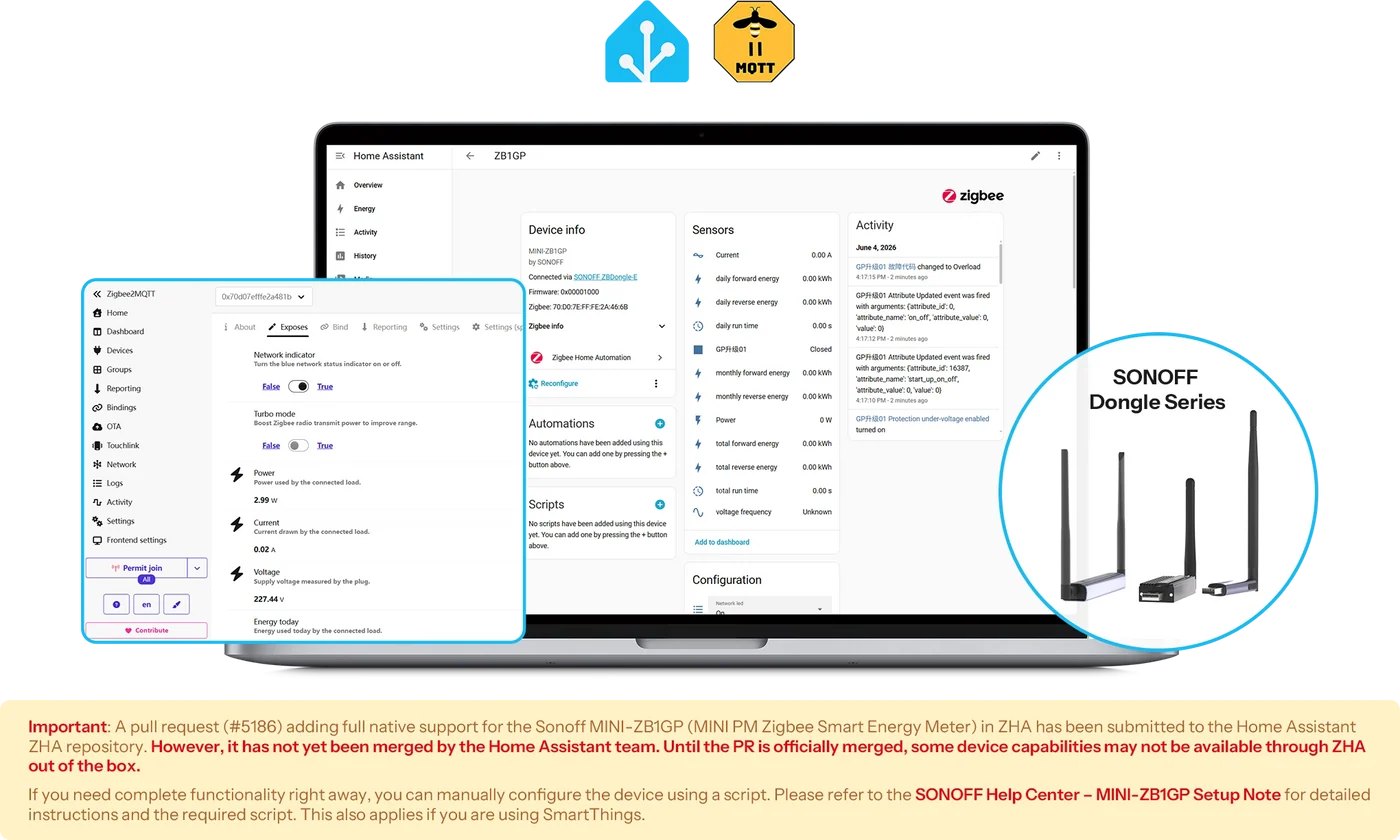

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Ready for Home Assistant
Open platforms

Ready for Home Assistant

Works with Home Assistant via ZHA or Zigbee2MQTT for local energy dashboards.

Compatibility

Zigbee 3.0SONOFF NSPanel ProSONOFF iHostZigbee Bridge Pro / UltraHome Assistant (ZHA, Zigbee2MQTT)Amazon Alexa (Echo with Zigbee)SmartThingsApple Home (Matter Bridge)
Good to know

Requires a Zigbee 3.0 gateway (not included), such as the SONOFF Zigbee Bridge Pro, NSPanel Pro, iHost or a ZBDongle with Home Assistant. This meter does not switch the load. Mains installation: must be wired by a qualified electrician with the power switched off.

Specifications

ModelMINI-ZB1GP
MCUEFR32MG21
Rating100-240V~ 50/60Hz 16A
ZigbeeIEEE 802.15.4
Net weight14g
Dimensions32x29x15.9mm
ColourWhite
Casing materialPC
Wire gaugeValue
Heading18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
UseIndoor concealed installation
Working temperature-10℃~ 40℃
Working humidity10%~90% RH, non-condensing
Voltage measuring range100-240V
Current measuring range0-16A
Power measuring range0-3840W
eWeLink
Control it from your phone
Set up and manage it with the free eWeLink app: remote control, timers, scenes and voice assistants.

Description

MINI PM is a small Zigbee energy meter you wire in line with an appliance or circuit. It does not switch the load; it measures it. See real-time consumption or solar generation, 180 days of history and the cost on your tariff, and get notified when an appliance starts or stops.

Function
Energy meter, no relay
Max current
16 A
History
180 days
Protocol
Zigbee 3.0 router

Main features

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – One module, full energy visibility
Retrofit

One module, full energy visibility

Install it behind a socket or in a junction box to measure a single appliance or a whole circuit.

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Consumption and generation
Energy & solar

Consumption and generation

Real-time charts for consumption or solar generation, with fixed or time-of-use tariffs for accurate cost figures.

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Protect your appliances
Alerts

Protect your appliances

Customisable overload, overcurrent, overvoltage and undervoltage alerts, plus notifications when an appliance changes state.

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Strengthens your mesh
Zigbee router

Strengthens your mesh

Being mains-powered, it also repeats the Zigbee signal for other devices.

SONOFF MINI PM Zigbee Energy Meter MINI-ZB1GP (Non-Switch), 16A – Ready for Home Assistant
Open platforms

Ready for Home Assistant

Works with Home Assistant via ZHA or Zigbee2MQTT for local energy dashboards.

Compatibility

Zigbee 3.0SONOFF NSPanel ProSONOFF iHostZigbee Bridge Pro / UltraHome Assistant (ZHA, Zigbee2MQTT)Amazon Alexa (Echo with Zigbee)SmartThingsApple Home (Matter Bridge)
Good to know

Requires a Zigbee 3.0 gateway (not included), such as the SONOFF Zigbee Bridge Pro, NSPanel Pro, iHost or a ZBDongle with Home Assistant. This meter does not switch the load. Mains installation: must be wired by a qualified electrician with the power switched off.

Specifications

ModelMINI-ZB1GP
MCUEFR32MG21
Rating100-240V~ 50/60Hz 16A
ZigbeeIEEE 802.15.4
Net weight14g
Dimensions32x29x15.9mm
ColourWhite
Casing materialPC
Wire gaugeValue
Heading18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
UseIndoor concealed installation
Working temperature-10℃~ 40℃
Working humidity10%~90% RH, non-condensing
Voltage measuring range100-240V
Current measuring range0-16A
Power measuring range0-3840W
