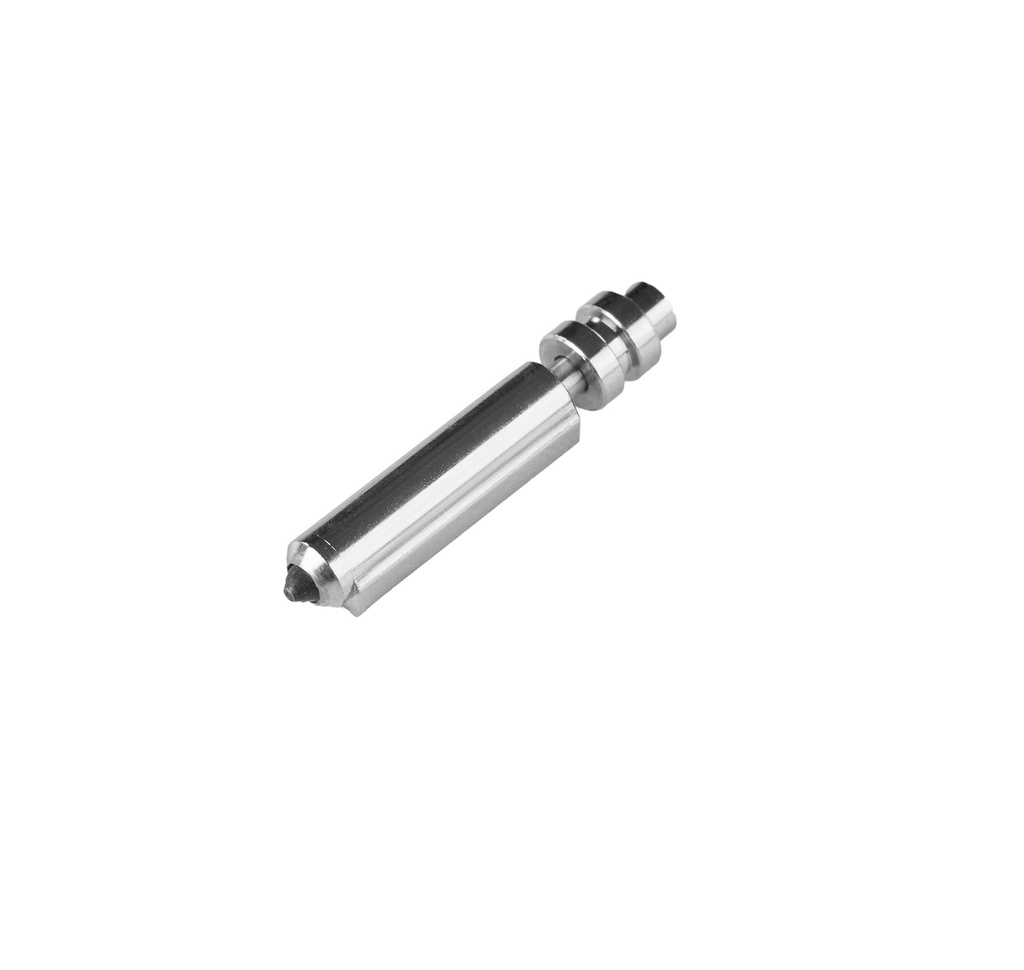

Anycubic SP Kobra X Series Quick Release Hotend with 0.4mm Nozzle

• The Anycubic Kobra X Series Quick Release Hotend with 0.4mm Nozzle is an official OEM drop-in thermal module designed specifically for high-speed printing on the Anycubic Kobra X / Kobra X Combo series. Rated for temperatures up to 320C, this module integrates an all-metal heat break, high-efficiency ceramic heater core, pre-wired sensors, and a standard 0.4 mm brass nozzle into a toolless quick-swap housing.
• Toolless Quick-Swap Design: Features an integrated quick-release retaining latch that lets you release and swap the hotend assembly in seconds without needing tools, heat-tightening, or disassembling the extruder carriage.
• High-Temperature Performance (320C): Unlike standard hotends capped at 260C, the all-metal thermal break supports engineering materials like ASA, ABS, and high-temp PETG alongside PLA and TPU.
• 360° Ring Ceramic Heating Element: Encloses the melt zone with a high-wattage ceramic ring heater for ultra-fast thermal ramp-up and consistent temperature stability during high-speed volumetric extrusion (up to 600 mm/s print speeds).
• Standard 0.4 mm Brass Nozzle: Features an integrated 0.4 mm brass nozzle, providing the ideal balance between fine feature detail and high material output for default slicing profiles.
• Pre-Assembled Plug-and-Play Unit: Ships fully assembled with pre-routed wiring connectors, thermistor, heater block, and a high-temperature protective silicone sock.

Specifications

Technical Specifications

• Compatible Models: Anycubic Kobra X / Kobra X Combo / Kobra S1 Series
• Nozzle Size & Material: 0.4 mm (Brass)
• Maximum Operating Temperature: 320C
• Heat Break Type: All-metal thermal isolation
• Filament Diameter: 1.75 mm
• Supported Filaments: PLA, PETG, ABS, ASA, TPU, Wood/Silk composites.

Maintenance & Care Tips

• Cold Swap Recommended: Always allow the hotend to cool below 40C before pressing the quick-release clip to avoid burns or thermal shock.
• Silicone Boot Requirement: Keep the custom silicone insulator installed around the heating block. Running without the boot allows part-cooling airflow to destabilize temperature readings, causing thermal runaway stops.
• Run PID Tuning: After clipping in a new module, run an Auto PID Calibration from the printer menu to calibrate temperature response for optimal thermal accuracy.
