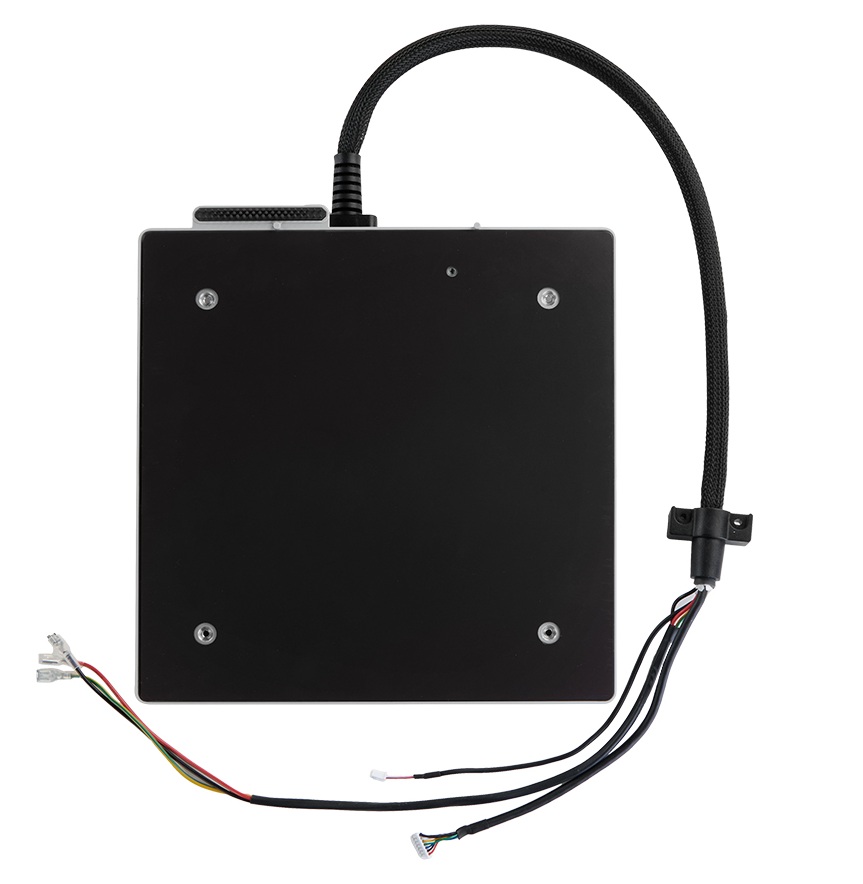

Anycubic SP Kobra X Series Hotbed Components

• The Anycubic Kobra X Series Hotbed Components form the core thermal and adhesion system of the printer bed. Designed as direct OEM replacement parts, these components maintain precise bed temperature uniformity, ensuring consistent first-layer adhesion and preventing warp on larger prints.
• Aluminum Heat Base Plate: High-thermal-conductivity substrate engineered for rapid heating up to high temperatures. It features an integrated heating element pattern that eliminates cold spots around the margins.
• High-Temp Magnetic Surface Pad: Glued directly onto the aluminum plate, this magnetic sheet securely holds PEI spring steel plates in place without shifting during high-speed acceleration.
• PEI Textured Spring Steel Sheet: The removable build plate surface provides strong adhesion while hot and allows easy, bend-to-release model removal once cooled down.
• Rear Accessory & Wiper Mount: Integrated mounting points at the back edge accommodate the Purge Wiper Assembly, allowing the hotend to flick away excess filament coils before prints begin.
• Thermal Sensors & Wiring Harness: Built-in thermistor for real-time temperature feedback to the mainboard, protected by heavy-duty strain relief to prevent wire fatigue from constant Y-axis movement.

Specifications

Technical Specifications

• Compatibility: Anycubic Kobra X / Kobra X Combo Series.
• Function: Platform heating, first-layer adhesion, strain-gauge leveling support.
• Connection Type: Pre-wired high-current terminal harness + thermistor connector.
• Installation: Direct-fit modular replacement via bed carriage bolts. Easy installation for minimal downtime.

Maintenance & Care Tips

• Cleaning the Build Surface: Wipe down the PEI top plate with 99% Isopropyl Alcohol (IPA) before major prints to remove finger oils. Avoid harsh solvents like acetone on textured PEI.
• Checking Cable Strain: Periodically verify that the rear Y-axis bed cable is securely clamped and free of friction against the rear frame.
• Re-Leveling After Swap: Anytime the hotbed assembly is replaced or unscrewed, run an Auto Bed Leveling (ABL) sequence from the display menu to update the mesh map.

​
