SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E

  • Matter over Wi-Fi smart dimmer wall switch
  • Flicker-free 0–100% dimming in 1% steps
  • Real-time power metering
  • Apple Home, Google Home, Alexa, SmartThings, Home Assistant
  • Overload and overheat protection, fits 86 mm boxes
32.99 € 32.99 €
27.72 €
  • Brand
  • Wi-Fi
  • Wattage
  • Certification
  • Manufacturer
  • Working Temperature
  • Casing Material
  • LED
  • Product dimension
  • Net Weight
  • Working humidity
  • App
Contact Us
 ​

Orb-DIM is a Wi-Fi smart dimmer wall switch with Matter. It dims LED, incandescent and halogen lamps smoothly and without flicker, lets you set brightness in 1% steps from the app or by voice, shows real-time power use and protects the circuit against overload and overheating.

Dimming
0–100%, 1% steps
Max load
400 W resistive / 200 VA LED
Metering
Real-time power
Protocol
Matter over Wi-Fi

Main features

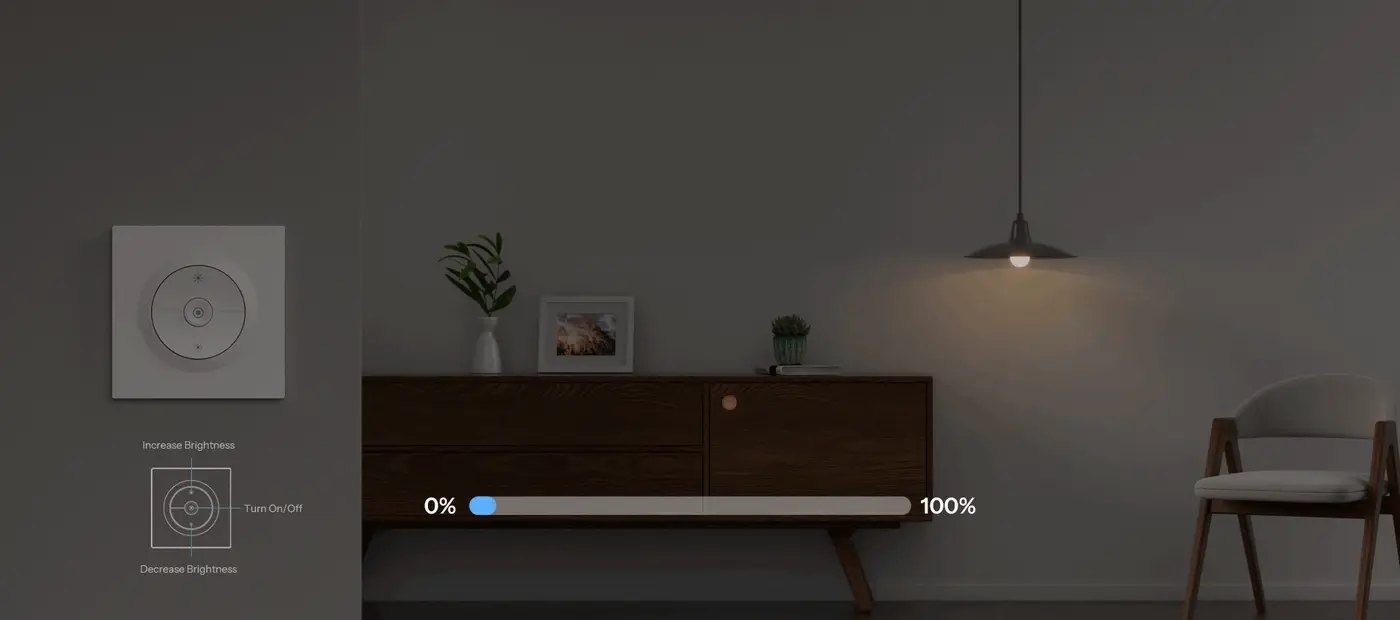

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – From 0% to 100%
Full-range dimming

From 0% to 100%

Automatic and manual calibration tune the dimmer to your lamps for smooth, natural fades with no flicker.

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – Works with most dimmable lamps
Wide compatibility

Works with most dimmable lamps

Supports dimmable LEDs, incandescent and halogen lamps and dimmable electronic transformers.

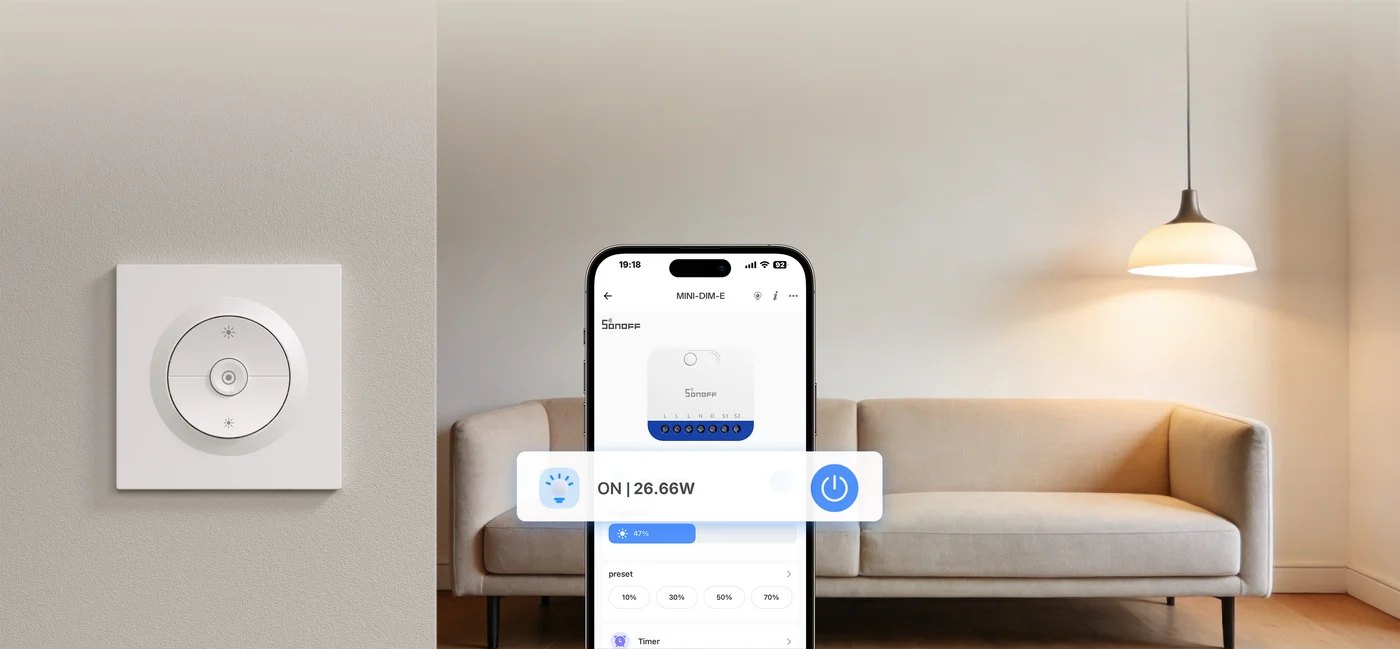

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – See your savings while dimming
Power metering

See your savings while dimming

Live power readings show how much energy the light uses, so you can see the effect of lower brightness.

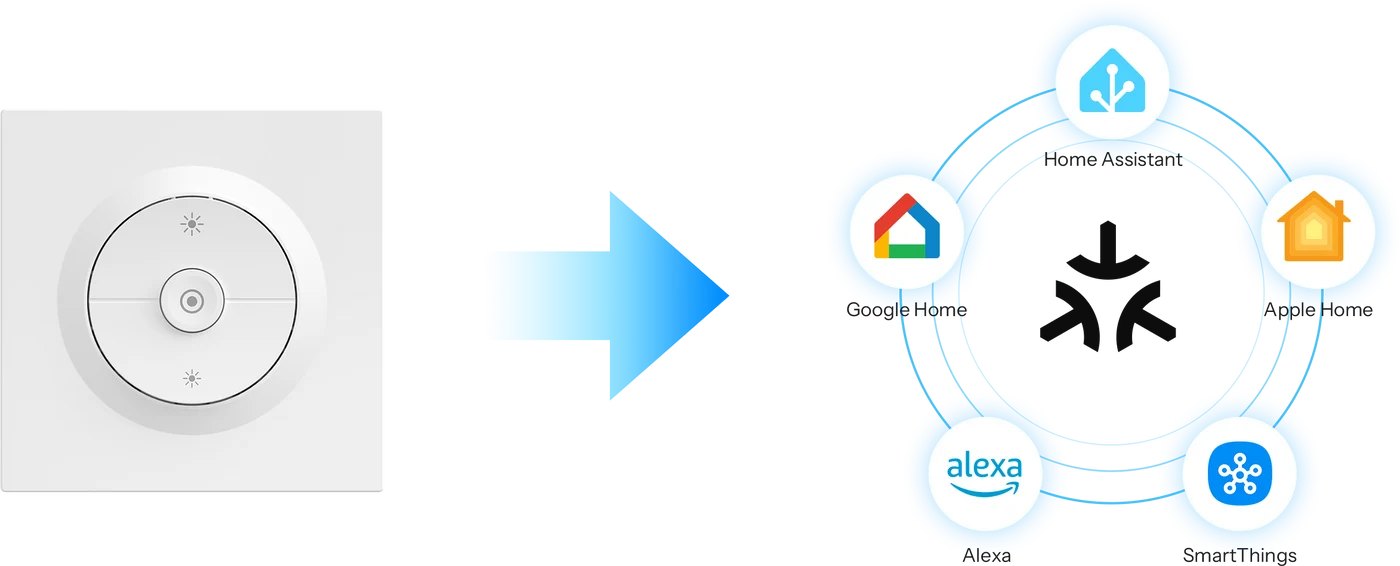

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – Every ecosystem, one dimmer
Matter

Every ecosystem, one dimmer

Add it with the Matter code to Apple Home, Google Home, Alexa or SmartThings and control the brightness from any of them.

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – Engineered for protection
Safety

Engineered for protection

Overload, overcurrent and overheat protection monitor the circuit continuously for safe operation.

Compatibility

MatterApple HomeGoogle HomeAmazon AlexaSmartThingsHome AssistanteWeLink
Good to know

Uses 2.4 GHz Wi-Fi. For Matter apps you need a Matter controller (for example HomePod, Nest hub, Echo or a SmartThings hub); without one, use the free eWeLink app. A neutral wire is required. Mains installation: must be wired by a qualified electrician with the power switched off.

Specifications

ModelMINI-DIM-E
MCUESP32-C3
Rating220-240V~ 50Hz 400W Max Resistive load
LED load200VA
Wi-FiIEEE 802.11b/g/n 2.4GHz
Net weight83g
Dimensions86x86x33.7mm
Casing materialPC
Working temperature-10℃~40℃
Working humidity5%~95% RH, non-condensing
CertificationsCE/RoHS
eWeLink

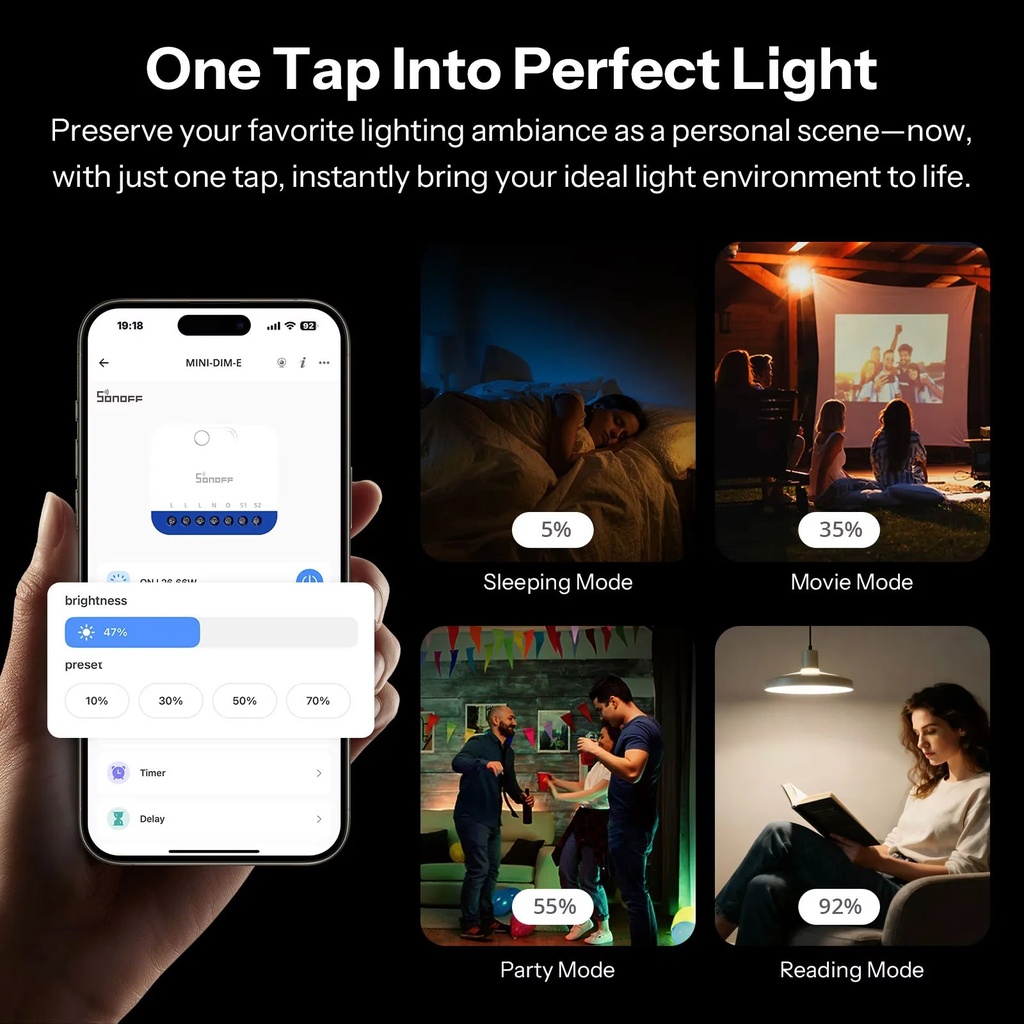

Control it from your phone
Set up and manage it with the free eWeLink app: remote control, timers, scenes and voice assistants.

Description

Orb-DIM is a Wi-Fi smart dimmer wall switch with Matter. It dims LED, incandescent and halogen lamps smoothly and without flicker, lets you set brightness in 1% steps from the app or by voice, shows real-time power use and protects the circuit against overload and overheating.

Dimming
0–100%, 1% steps
Max load
400 W resistive / 200 VA LED
Metering
Real-time power
Protocol
Matter over Wi-Fi

Main features

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – From 0% to 100%
Full-range dimming

From 0% to 100%

Automatic and manual calibration tune the dimmer to your lamps for smooth, natural fades with no flicker.

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – Works with most dimmable lamps
Wide compatibility

Works with most dimmable lamps

Supports dimmable LEDs, incandescent and halogen lamps and dimmable electronic transformers.

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – See your savings while dimming
Power metering

See your savings while dimming

Live power readings show how much energy the light uses, so you can see the effect of lower brightness.

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – Every ecosystem, one dimmer
Matter

Every ecosystem, one dimmer

Add it with the Matter code to Apple Home, Google Home, Alexa or SmartThings and control the brightness from any of them.

SONOFF Fusion Orb-DIM Matter Wi-Fi Dimmer Wall Switch MINI-DIM-E – Engineered for protection
Safety

Engineered for protection

Overload, overcurrent and overheat protection monitor the circuit continuously for safe operation.

Compatibility

MatterApple HomeGoogle HomeAmazon AlexaSmartThingsHome AssistanteWeLink
Good to know

Uses 2.4 GHz Wi-Fi. For Matter apps you need a Matter controller (for example HomePod, Nest hub, Echo or a SmartThings hub); without one, use the free eWeLink app. A neutral wire is required. Mains installation: must be wired by a qualified electrician with the power switched off.

Specifications

ModelMINI-DIM-E
MCUESP32-C3
Rating220-240V~ 50Hz 400W Max Resistive load
LED load200VA
Wi-FiIEEE 802.11b/g/n 2.4GHz
Net weight83g
Dimensions86x86x33.7mm
Casing materialPC
Working temperature-10℃~40℃
Working humidity5%~95% RH, non-condensing
CertificationsCE/RoHS
