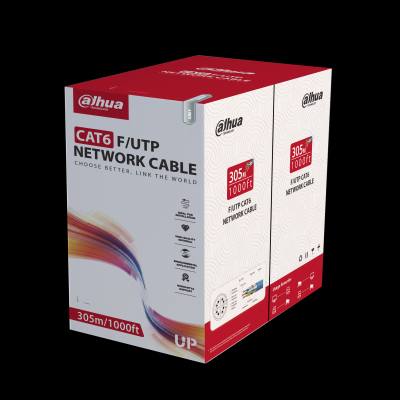

Dahua CAT6 CPR OFC FTP Cable 305m 0.57mm Gray PFM920I-6F-C

Dahua CAT6 CPR OFC FTP Cable 305m 0.57mm Gray PFM920I-6F-C

318.49 € 318.49 €
318.49 €
  • Type
  • Material
  • Color
  • Colour
  • Length
  • Cable Type
  • Conductor
  • Environment
  • Manufacturer
  • Diameter
  • Thickness
  • Wire Gauge
  • Min. Average Thickness
  • Specification
  • Max. DC Resistance of a Single Conductor
  • Min. Insulation Resistance
  • Max. DC Resistance Unbalance
  • Dielectric Strength
Contact Us
 ​

Description

Specifications

Type Cat6
Material Oxygen free copper (99.97% purity)
Color Gray
Colour Grey
Length 305m
Cable Type FTP
Conductor Pure Copper
Environment Indoor
Manufacturer Dahua
Diameter 0.57 mm ± 0.01 mm (0.0224" ± 0.0004")
Thickness 0.025 mm × 25 mm (0.001" × 0.98")
Wire Gauge 23 AWG
Min. Average Thickness 0.21 mm (0.0083")
Specification 500D
Max. DC Resistance of a Single Conductor 7.35 Ω / 100 m (328.08 ft)
Min. Insulation Resistance 5000 MΩ·km
Max. DC Resistance Unbalance 2% (pair intra), 4% (pairs inter)
Dielectric Strength No breakdown with 1kV DC for 1 min
