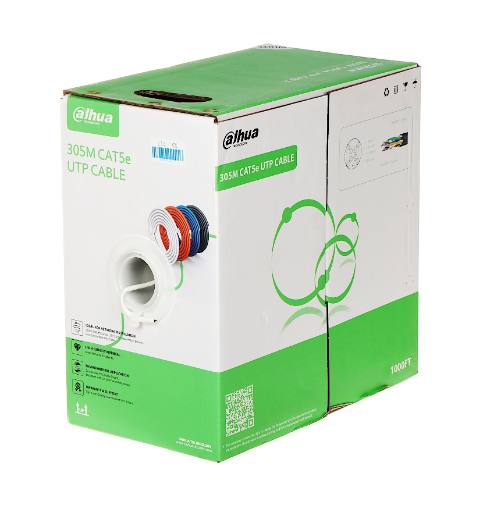

Dahua CAT5e Cable CCA 305m Orange DH-PFM922I-5EUN-C

Dahua CAT5e Cable CCA 305m Orange DH-PFM922I-5EUN-C

57.98 € 57.98 €
57.98 €
  • Type
  • Material
  • Color
  • Colour
  • Length
  • Cable Type
  • Conductor
  • Environment
  • Manufacturer
  • Diameter
  • Wire Gauge
  • Min. Average Thickness
  • Specification
  • Max. DC Resistance of a Single Conductor
  • Min. Insulation Resistance
  • Max. DC Resistance Unbalance
  • Dielectric Strength
Contact Us
 ​

Description

Specifications

Type Cat5e
Material CCA (Copper content: 22%–31%)
Color Orange
Colour Orange
Length 305m
Cable Type UTP
Conductor CCA
Environment Indoor
Manufacturer Dahua
Diameter 0.5 mm ± 0.01 mm
Wire Gauge 24 AWG
Min. Average Thickness 0.18 mm
Specification 500D
Max. DC Resistance of a Single Conductor 14.5 Ω/100 m (14.5 Ω/328.08 ft)
Min. Insulation Resistance 5000 MΩ/km
Max. DC Resistance Unbalance 2% (pair intra), 4% (pairs inter)
Dielectric Strength No breakdown with 1kV DC for 1 min
