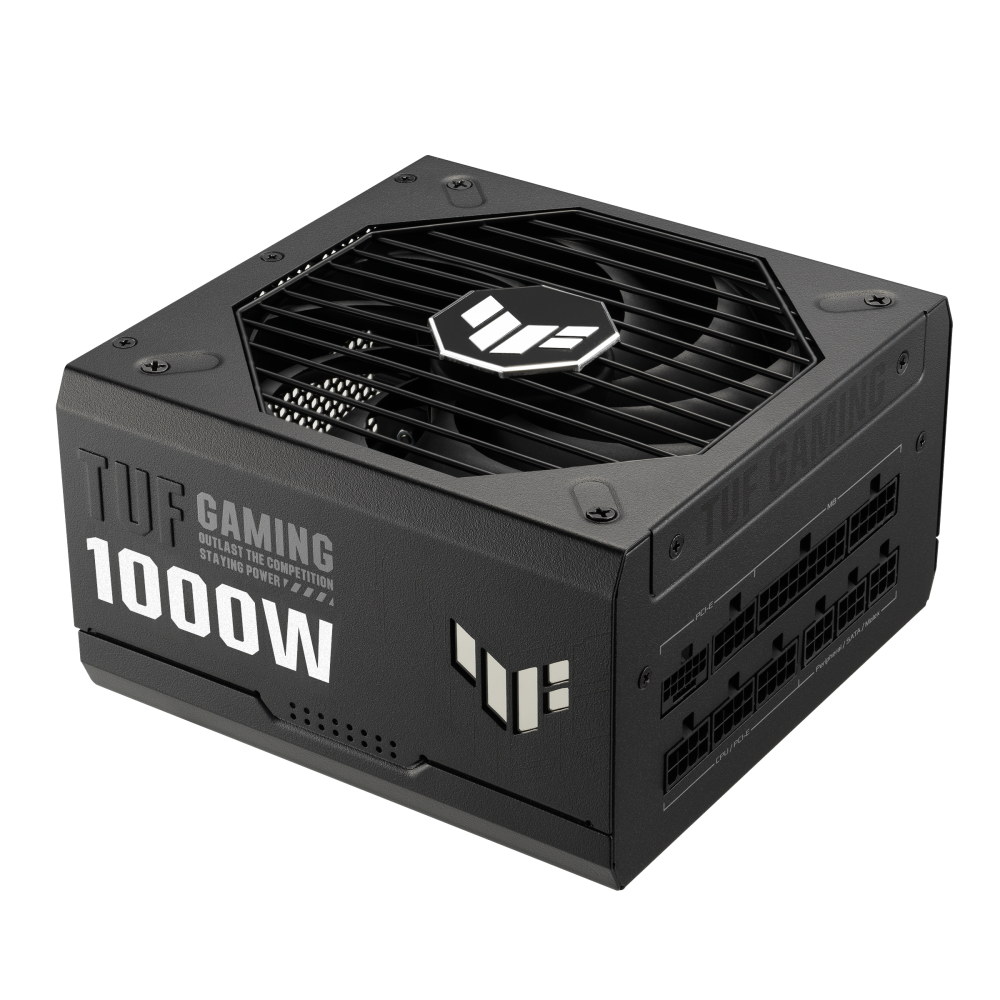

ASUS TUF Gaming 1000W Gold PSU - 80 PLUS Gold, Fully Modular, ATX 3.0, Black

Efficient, resilient 1000 W fully modular power supply with 80 PLUS Gold certification, PCIe 5.1 support and military-grade components, built for the long haul.

Gaming Power Supply Modular
175.00 € 175.00 €
147.06 €
  • Brand
  • Colour
  • Max Power
  • Form Factor
  • Wattage
  • Certification
  • PCI-E connector
  • Sata Connector
  • Cooling
  • Color
  • CPU
  • HDD Connector
  • Brand
  • Manufacturer
  • Storage
  • Efficiency Rating
  • Protections
  • SATA
  • Form factor
Contact Us
 ​

Efficient, resilient 1000 W fully modular power supply with 80 PLUS Gold certification, PCIe 5.1 support and military-grade components, built for the long haul.

The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

Specifications

Intel Form FactorATX12V
PFC TypeActive PFC
ATX StandardATX 3.1
80 PLUS Efficiency80Plus Gold
Protection FeaturesOPP/OVP/UVP/SCP/OCP/OTP
AC Input Range100-240Vac
DC Output Voltage+3.3V +5V +12V -12V +5Vsb
Maximum Load25A 25A 83.3A 0.8A 3A
Combined Load130W 130W 1000W 9.6W 15W
Total Output1000W
Cable ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Dimensions150 x 150 x 86 mm
Weight2.48kg (single PSU)
AURA SYNCNo
MTBF>120,000 hrs @ 40°C
0dB Fan ButtonNo. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.

Specifications from the official ASUS product page. Specifications and appearance may vary by region.

Description

Efficient, resilient 1000 W fully modular power supply with 80 PLUS Gold certification, PCIe 5.1 support and military-grade components, built for the long haul.

The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

Specifications

Intel Form FactorATX12V
PFC TypeActive PFC
ATX StandardATX 3.1
80 PLUS Efficiency80Plus Gold
Protection FeaturesOPP/OVP/UVP/SCP/OCP/OTP
AC Input Range100-240Vac
DC Output Voltage+3.3V +5V +12V -12V +5Vsb
Maximum Load25A 25A 83.3A 0.8A 3A
Combined Load130W 130W 1000W 9.6W 15W
Total Output1000W
Cable ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Dimensions150 x 150 x 86 mm
Weight2.48kg (single PSU)
AURA SYNCNo
MTBF>120,000 hrs @ 40°C
0dB Fan ButtonNo. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.

Specifications from the official ASUS product page. Specifications and appearance may vary by region.
