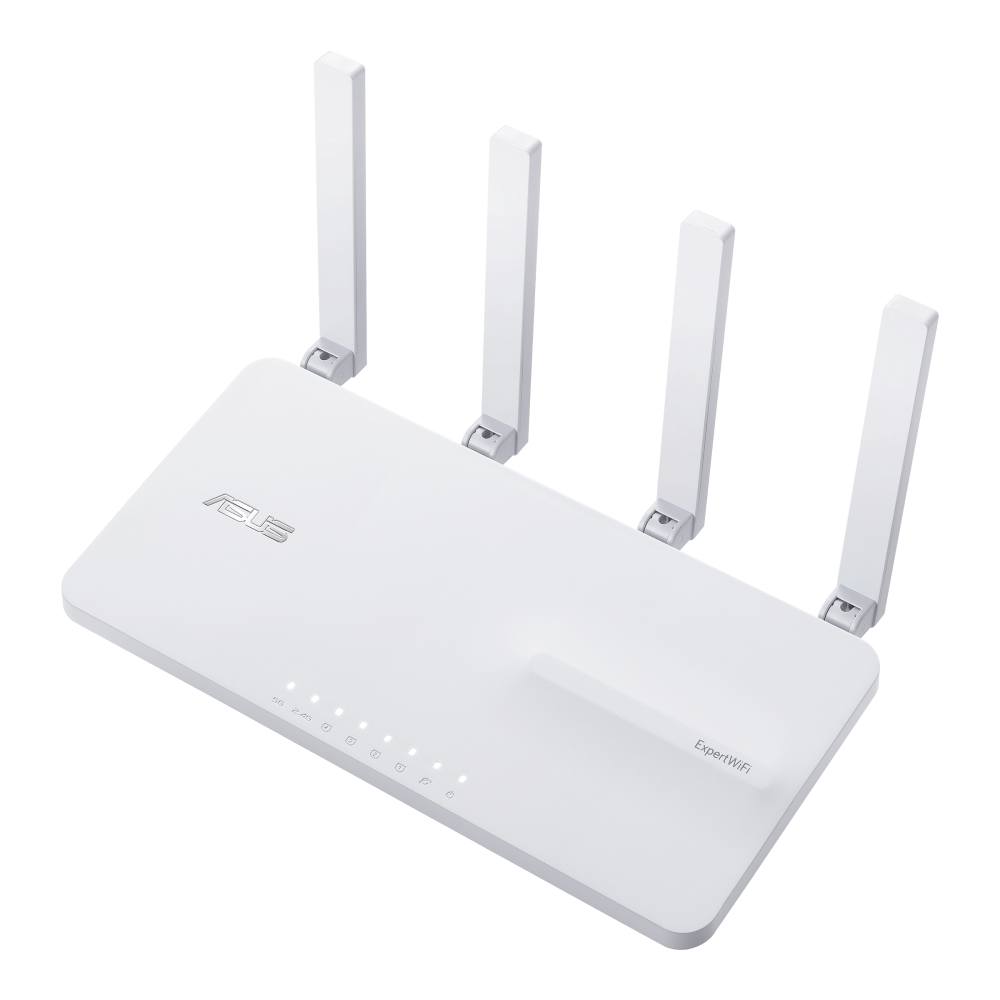

| Model Name | EBR63 |
|---|
| Network Standard | IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a |
|---|
| Product Segment | AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps |
|---|
| Data Rate | WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps |
|---|
| Antenna | 4 External Antenna |
|---|
| Transmit / Receive | 5GHz 2x2
2.4GHz 2x2 |
|---|
| Processor | 1.7GHz quad-core processor |
|---|
| Memory | 256MB FLASH
512MB RAM |
|---|
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth |
|---|
| Operating Frequency | 5 GHz
2.4 GHz |
|---|
| Operating Mode | Access Point Mode
AiMesh Node Mode
Wireless Router Mode |
|---|
| I/O Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0 |
|---|
| Buttons | WPS Button, Reset Button, Power Switch |
|---|
| LED Indicator | POWER, WAN, LAN, 5G, 2.4G |
|---|
| Power Supply | AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 2A current |
|---|
| Mounting | Wall Mount |
|---|
| Package Content | ．ExpertWiFi EBR63
．RJ45 Ethernet Cable
．Power Adapter
．Quick Start Guide
．Warranty Card |
|---|
| Product Weight (g) | 436g |
|---|
| Product Dimentions | 225*127*146mm |
|---|
| AiMesh | AiMesh, • Primary AiMesh Router, • AiMesh Node |
|---|
| Device Access Control | ------------------------------------------------------
"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Device Access Control Profile :12, • Maximum Device Access Control Content Filter Rule :12 |
|---|
| Dashboard | Dashboard |
|---|
| Self-Defined Network | ------------------------------------------------------------------------
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• VPN Network
• IoT Network
• Scheduled Network
• Guest Network
• Guest Portal
• Employee
Self-Defined Network Type
• Maximum Self-Defined Network Rule :16
DNS Server Connection
AP isolate
Bandwidth Limiter
WiFi share: QR code, PDF file
WiFi Scheduling: Weekly Schedule
WiFi Scheduling: One Time Access
VPN WiFi
Captive Portal for Free WiFi
VLAN
Multiple Network |
|---|
| Security | AiProtection, VPN, WPS, Let's Encrypt, DNS-over-TLS, SSH, Firewall, • Maximum Firewall Keyword Filter :64, • Maximum Firewall Network Service Filter :32, • Maximum Firewall URL Filter : 64 |
|---|
| AiProtection | AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking |
|---|
| VPN | VPN Client L2PT, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark |
|---|
| Traffic Control | Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Website History |
|---|
| WAN | • IPSec
• L2TP
• PPTP
• PPPoE
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
• IPSec Pass-Through
• L2TP Pass-Through
• PPTP Pass-Through
NAT Passthrough |
|---|
| LAN | DHCP Server, IGMP Snooping, IPTV, VLAN |
|---|
| Wireless | MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler |
|---|
| USB application | 4G / 5G Auto Mobile Tethering, Media Server, Samba Server, FTP Server, Shared Folder Privileges |
|---|
| User Interface | WEB: ASUSWRT, APP: ASUS ExpertWiFi APP |
|---|
| Administration | Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update |
|---|
