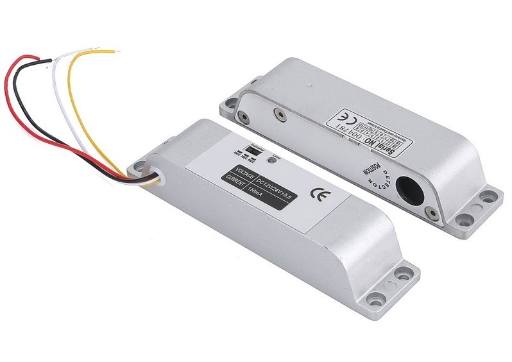

Zudsec Surface Electric Bolt Lock ZDL-230A
-
Lock Type
-
Product Type
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Surface mounted, no need to drill a hole on frame, Safe & Durable Lower power consumption, Enviromental protection Auto-relock if no Action within 5 secs Working Measure: power-on to lock Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door Input Voltage: DC12V Working Current: 900mA; Static Current: 100mA. Working Measure: Fail secure, unlock when energized Fail-safe type: Power to lock ( The lock is NC ) Dimension: L150xW34xH28(mm) Operating temp: -10~+25℃ Operating Humidity: 0~90% Special Designed: Tested to 500000 cycles Face place material：Zinc Alloy, Carrulous Line Finished Door status signal output contact (NO/COM) Weight: 0.6Kg
Specifications:
Lock Type: Electric Bolt
Product Type: Lock
Description
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Surface mounted, no need to drill a hole on frame, Safe & Durable Lower power consumption, Enviromental protection Auto-relock if no Action within 5 secs Working Measure: power-on to lock Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door Input Voltage: DC12V Working Current: 900mA; Static Current: 100mA. Working Measure: Fail secure, unlock when energized Fail-safe type: Power to lock ( The lock is NC ) Dimension: L150xW34xH28(mm) Operating temp: -10~+25℃ Operating Humidity: 0~90% Special Designed: Tested to 500000 cycles Face place material：Zinc Alloy, Carrulous Line Finished Door status signal output contact (NO/COM) Weight: 0.6Kg
Specifications:
Lock Type: Electric Bolt
Product Type: Lock
Specifications
| Lock Type | Electric Bolt |
| Product Type | Lock |
